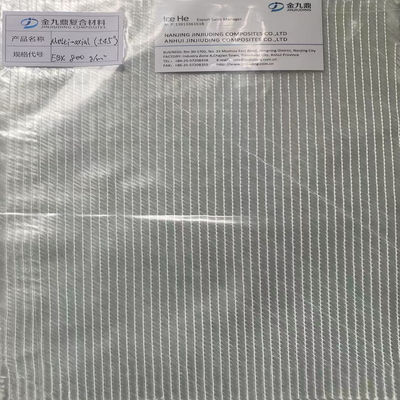

Fiberglass Multi Axial Fabric ±45° 800g Per Squre Meter Good Performance On Tensile Strength And Easily Wet Out Of Resin For FRP Boat Wind-power Industry
| Place of Origin | CHINA |
|---|---|
| Certification | ISO 9000:12000 |
| Model Number | EBX800-1270mm |
| Minimum Order Quantity | 500kgs |
| Price | negotiatable |
| Packaging Details | The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT |
| Delivery Time | 7 DAYS |
| Payment Terms | T/T, L/C |
| Supply Ability | 20MT A WEEK |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Fiberglass | Color | White |
|---|---|---|---|
| Texture | ±45° Directional Roving Weave | Width | 1270mm |
| Resin | Unsaturated Resin And Other Type | Application | FRP Boat And Win Power Industry |
| Weight | 800g | ||
| Highlight | Fiberglass Multi Axial Fabric,FRP boat Multi Axial Fabric |
||
Product Description
Fiberglass Multi Axial Fabric ±45° 800g per squre meter, good performance on tensile strength and easily wet out of resin for FRP boat and wind-power industry
Introduction:
Fiberglass multi-axial is a multi-directional composite fabric composed of untwisted fiberglass roving arranged in directions of 0°/ 45°/90°/-45°, and sewn together with coil structures. During the forming process, a layer of chopped strands, polyester veil etc. can also be sewn together to process various combo fabrics to obtain specific properties.
Specifications:
| Product No. | Overall weight (g/m²) | 0° roving (g/m²) | 45° roving (g/m²) | 90°roving (g/m²) | -45° roving (g/m²) | Chopped roving (g/m²) | Polyester veil (g/m²) | Width (mm) |
| EBX450 | 450 | / | 225 | / | 225 | / | / | 150~2540 |
| EBX600 | 600 | / | 300 | / | 300 | / | / | 150~2540 |
| EBX800 | 800 | / | 400 | / | 400 | / | / | 150~2540 |
| EBXM825 | 825 | / | 300 | / | 300 | 225 | / | 150~2540 |
| ETTX450 | 450 | / | 150 | 150 | 150 | / | / | 150~2540 |
| ETTX750 | 800 | / | 270 | 260 | 270 | / | / | 150~2540 |
| ETTX450P40 | 490 | / | 150 | 150 | 150 | / | 40 | 150~2540 |
| ETLX750 | 750 | 283 | 233 | / | 233 | / | / | 150~2540 |
| EQX800 | 800 | 212 | 200 | 200 | 200 | / | / | 150~2540 |
| EQX1200 | 1200 | 283 | 300 | 310 | 300 | / | / | 150~2540 |
Features:
● No binder content, good wet out of resin
● Provide mechanical strength of the product i multi direction
● Fiber straight arrangemet, max. usage of fiber strength
● The fabric's surface is flat, with good quality of finished products' outlook
Application:
● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.
● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.
● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
